Vue CLI with jQWidgets

This tutorial will show you how to use Vue CLI along with the Vue Components by jQWidgets.
Please, follow the instructions below:

I. Install the Vue CLI globally, so we can have it's commands available:

npm install -g @vue/cli

II. Create an Vue CLI application:

vue create jqwidgets-vue-cli-app   //Choose the default preset

III. Navigate to the application:

cd jqwidgets-vue-cli-app

IV. Install the jQWidgets dependency:

npm install jqwidgets-scripts --save--dev

V. Copy the styles folder from node_modules/jqwidgets-scripts/jqwidgets to the public folder.

VI. Refer the jqx.base.css file and the files of the other themes that you use in index.html:

<link rel="stylesheet" type="text/css" href="./styles/jqx.base.css" />

VII. Open the App.vue file located in src folder and replace the content with the following:

<template>
    <JqxBarGauge ref="barGaugeReference"
        :width="600" :height="600"
        :values="values" :formatFunction="formatFunction"
    />
</template>

<script>
    import JqxBarGauge from 'jqwidgets-scripts/jqwidgets-vue/vue_jqxbargauge.vue';

    export default {
        components: {
            JqxBarGauge
        },
        data: function () {
            return {
                values: [10, 20, 30, 40, 50]
            }
        },
        methods: {
            formatFunction: function (value, index, color) {
                return color;
            }
        }
    }
</script>

VIII. Run the Vue CLI development server:

npm run serve

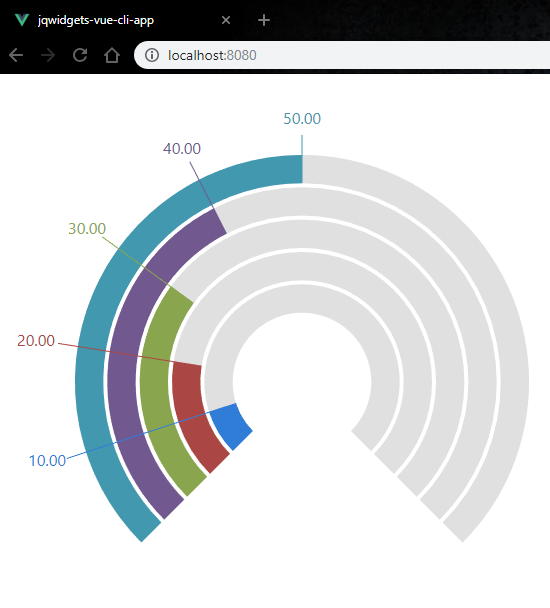

IX. Navigate to localhost:8080 and see the result:
